Test And Measure Tools

25m Cross Line Laser Level (Green Beam)

Product Features FUNCTIONS User Manual

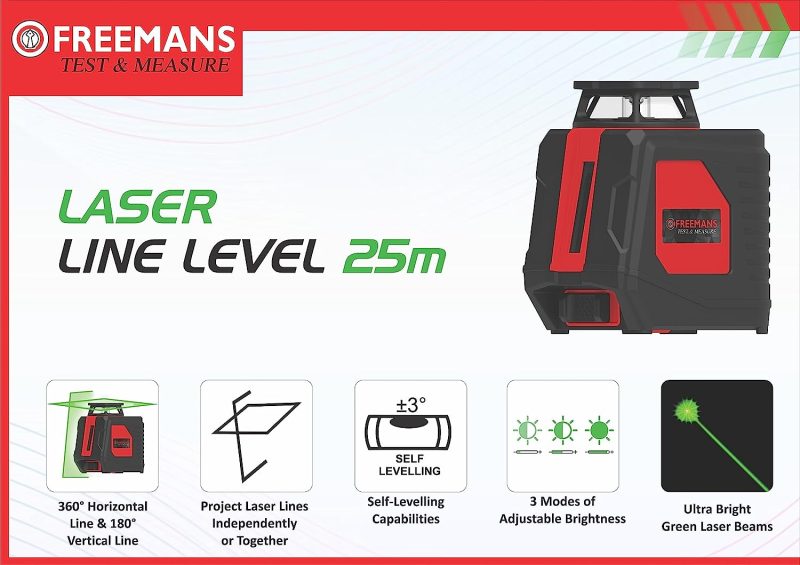

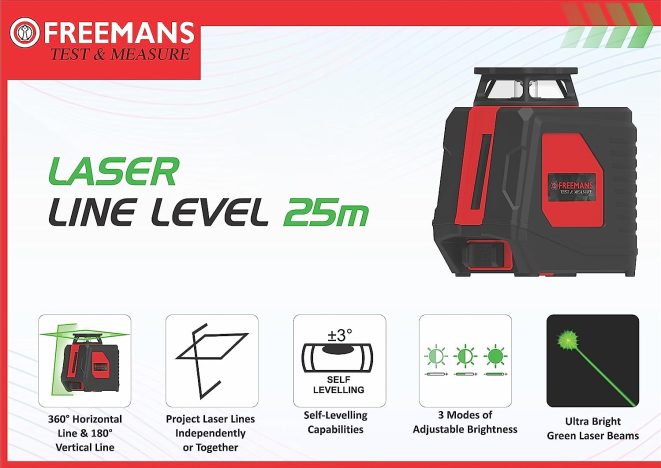

Product Features

Accuracy ±1.5mm/7m

Ultra bright green laser

3 Modes of brightness

Working range 25m

IP54

Carry Bag

FUNCTIONS

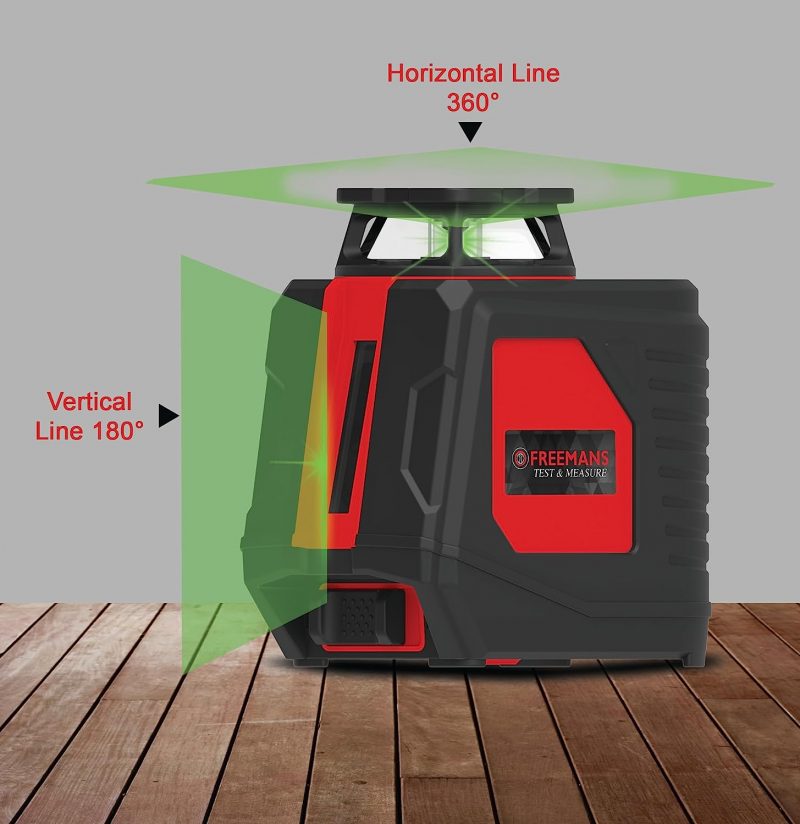

360° Horizontal line & 180° Vertical line

Self-leveling mode

Manual leveling mode

User Manual

PRO LL – LASER LINE USER MANUAL

Available Sizes

METRIC

25m

IMPERIAL

81ft

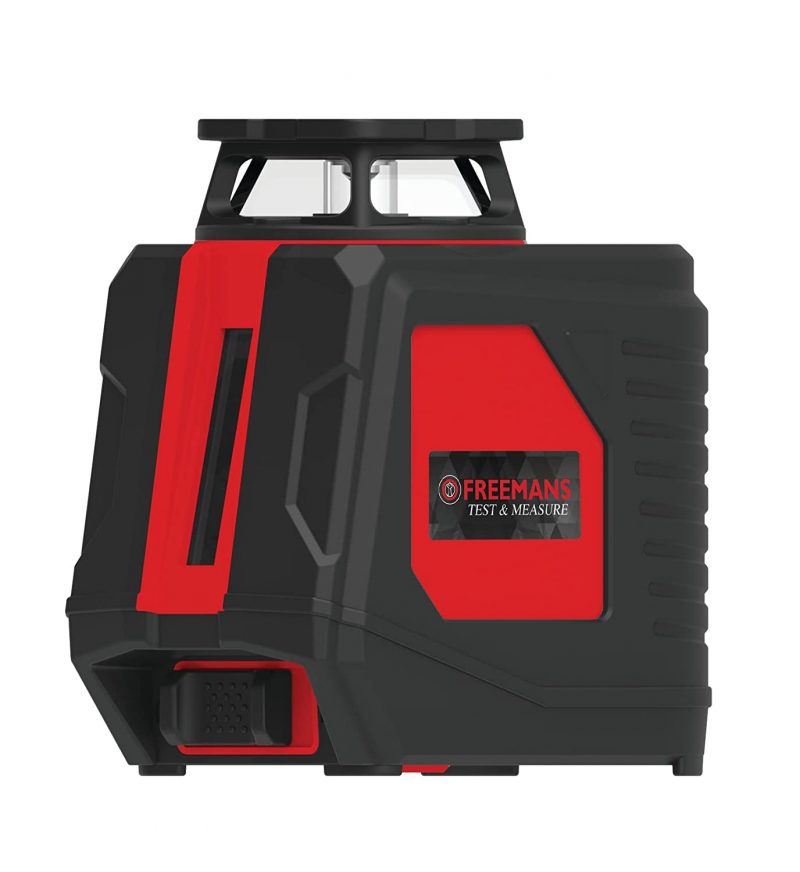

FREEMANS 25m Cross Line Laser Level (Green Beam)

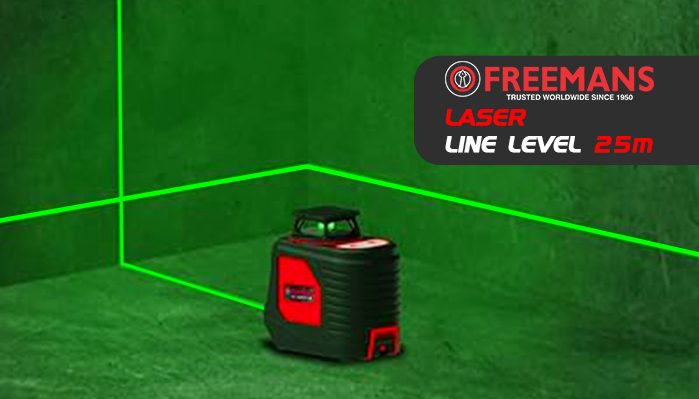

180° VERTICAL & 360° HORIZONTAL HIGH VISIBILITY GREEN LASER LINES can be projected independently or together. Ultra bright green laser suitable for indoor use. 3 levels of brightness that can be adjusted as per jobsite conditions and/or user comfort (100%<75%<50%)
SELF-LEVELING & MANUAL MODES: Easy front slide switch to operate between the 2 modes. In self-levelling mode, the Laser Level will automatically level upto ±3°, or else the laser lines will flash to indicate it is not level. In manual mode, the self-levelling function is deactivated, and the device can be manually placed at a pre-determined angle.
HANDS FREE USE: The Laser Level can be mounted onto a tripod (1/4” Thread Mount) or affixed to most metal surfaces by using the Magnetic Mounting bracket (Included), allowing for hands free work. Applications include installing tiles, shelves, mirrors, photo frames, doors, windows, railings etc.
IP54 PROTECTION: The Laser Line Level has a IP54 protection grade (shock resistant, waterproof, dustproof, shockproof, wear resistant, impact resistance, cold and high temperature.). Convenient carry bag provided for easy storage and portability.
1 YEAR WARRANTY AGAINST MANUFACTURING DEFECTS: FREEMANS is pleased to offer a 1-year warranty against manufacturing defects.

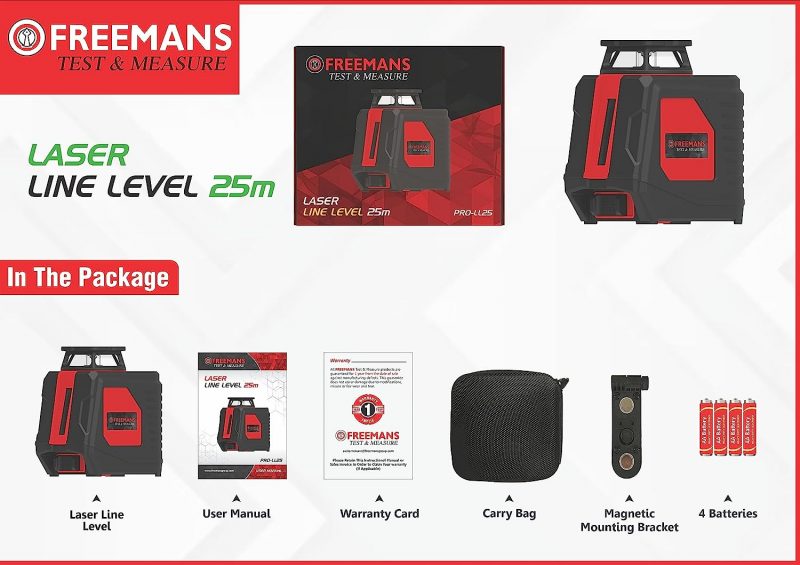

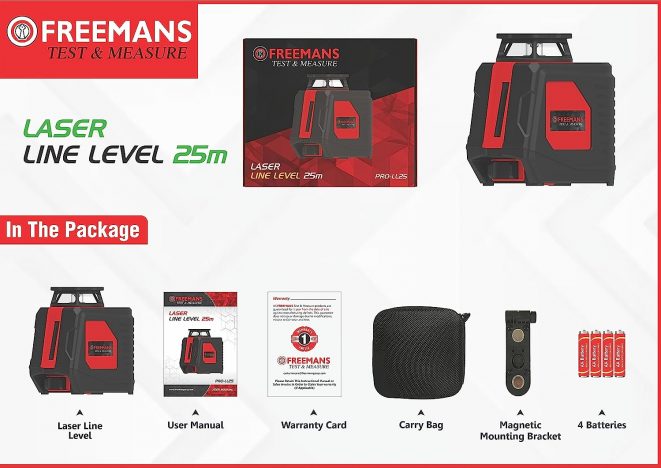

PACKAGE CONTENTS include 1 x Laser Line Level, 1 x Magnetic Mounting Bracket, 1 x Carry Bag, 1 x User Manual, 4 x AA batteries and 1 x Warranty card.
