Posted On Thu, Dec 26, 2024
The FREEMANS 5m:19mm Digital Measuring Tape combines the traditional functionality of a measuring tape with the convenience of modern technology. Manufactured with Class II Accuracy, the tape features a digital display which provides exact, easy-to-read measurements. Moreover, measurements can be converted between metric and imperial units at the click of a button – no manual conversion is needed!
The tape features an auto-lock mechanism which ensures that the tape blade remains securely extended, making it ideal for taking measurements single-handedly. The ability to release the lock with a simple press button adds to the ease of use, preventing the tape from retracting unexpectedly during measurement.
Press it to pull out or retract the blade; release it to lock the blade.
4) Hold Key
Short Press to Hold / release the measurement reading. “H” is displayed in hold mode.
5)
Short press to switch between inside & outside measurement. In inside measurement mode, the length of the digital measuring tape (7.6cm) is added to the reading.

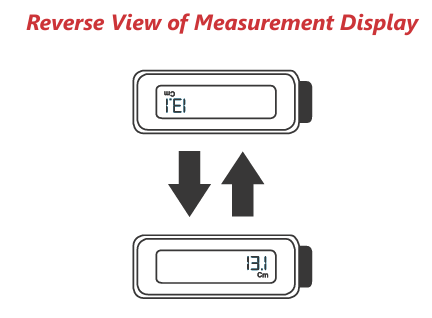

Double press to reverse LCD view of measurement.
Long press to store measurement readings in the device memory.
6) UNIT …MR

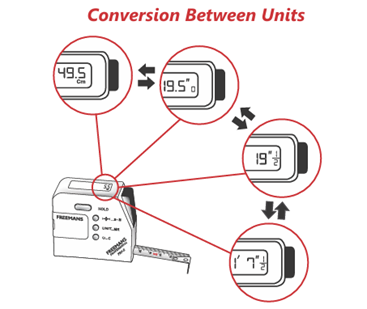

Short press to switch between metric and imperial units.
Long press to display measurement readings stored in the device memory.
7)
Short Press: Power on/off (Device shuts off automatically after 6 minutes of inactivity).
Long press in FREE MODE to set reading to zero.
Long press in HOLD MODE to clear memory data.
How to Save Measurements
Save Measurements FREEMANS digital measuring tape stores upto 8 measurements.
Short Press Hold to enter Hold Mode.
Then Short Press to save a measurement. or Long Press to save a measurement.
Or
Long Press to save a measurement.
Toggle between Stored Measurements
In Hold Mode, Short Press UNIT …MR to access stored measurements. Short Press UNIT …MR again to toggle between stored measurements.
Delete Stored Measurements
In Hold Mode, Long Press to delete stored measurements.
Precautions / FAQs
1) Avoid retracting the blade too fast (>1.5m/s) or you may obtain incorrect measurements.
2) A slow, smooth and controlled retraction is essential to ensure the safety of people around you.
3) A blurred display is an indicator that the battery needs changing. Ensure the tape blade is fully retracted when you are changing the battery or your display will show “E—O”.
4) Refrain from pulling your tape blade out completely, as this may damage your Instrument.
5) Avoid pressing buttons when the blade is moving, as this may affect the accuracy of your measurements.
6) Your tape blade must be always kept clean and dry.
7) To clean your tape blade, stick a 1.2×2.5cm bi-sided adhesive tape between 3-7cm graduation markings on the tape blade. Pull the tape blade back and forth several times to release dirt from the tape. Remove the bi-sided tape from the tape blade once you are done cleaning.

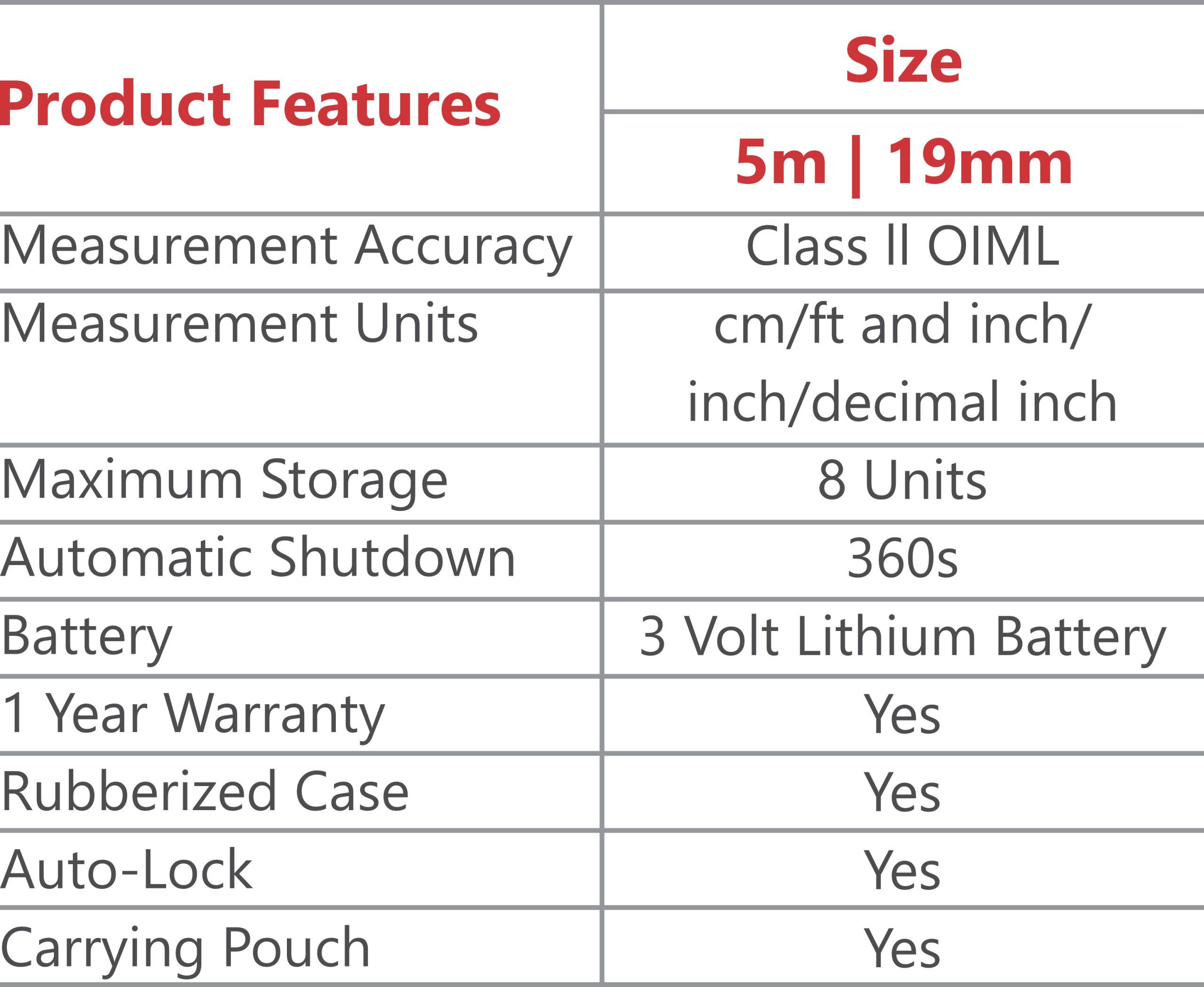

Technical Specifications:
Warranty:
FREEMANS Test & Measure products are covered by a 1-year limited guarantee against defects in material & workmanship and if found defective will be replaced free of charge. This is valid from the date of final sale. The guarantees do not cover damage caused by misuse, modification, accident or fair wear and tear.
Please retain your instruction manual or sale invoice in order to claim your warranty (if applicable).
Conclusion:
The FREEMANS Digital Measuring Tape combines advanced features and a user-friendly design, making it a great choice for those who need both accuracy and ease of use in their measuring tasks.
Watch the video demonstration to explore how the Digital Measuring Tape advanced capabilities can make your measuring tasks easier.
Don’t miss out—this product is available on our Amazon brand store today!
The FREEMANS 5m:19mm Digital Measuring Tape combines the traditional functionality of a measuring tape with the convenience of modern technology. Manufactured with Class II Accuracy, the tape features a digital display which provides exact, easy-to-read measurements. Moreover, measurements can be converted between metric and imperial units at the click of a button – no manual conversion is needed!
The tape features an auto-lock mechanism which ensures that the tape blade remains securely extended, making it ideal for taking measurements single-handedly. The ability to release the lock with a simple press button adds to the ease of use, preventing the tape from retracting unexpectedly during measurement.
To make the most of the FREEMANS Digital Measuring Tape PRO E, follow the simple instructions below:

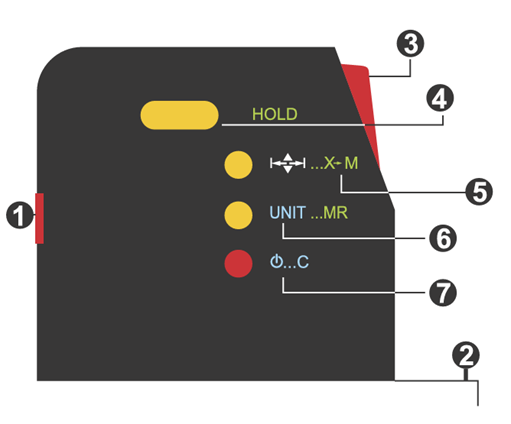

Nomenclature & Button Functions_________
